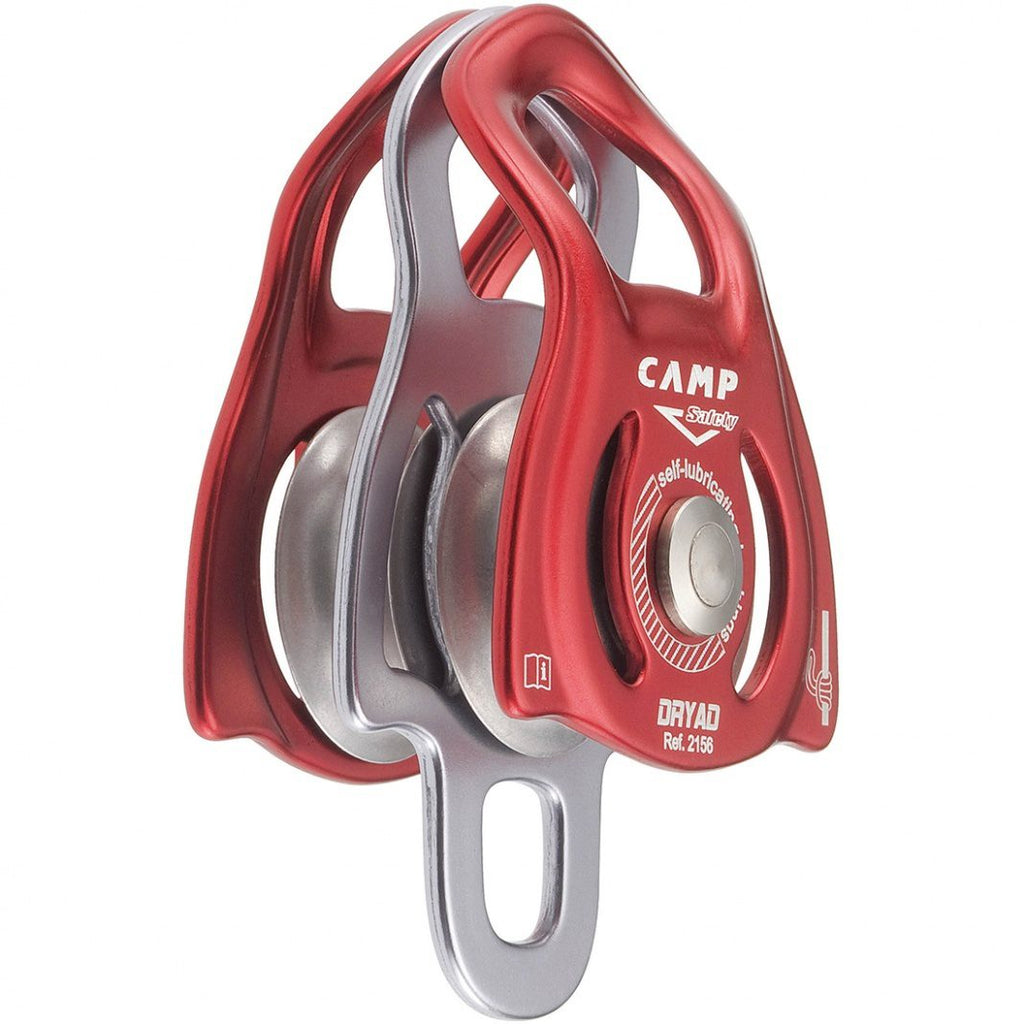

The Dryad is a remarkably compact double pulley designed for quick and easy haul systems.
| Ref. | Product name | Weight | Inner sheave diameter | Rope diameter Max | Working load Max | Breaking load | Brass bushing | Sheave material |  |
|||||
| g | oz | mm | in | mm | in | kN | LBF | kN | LBF | EN 12278 | ||||
| 2156 | DRYAD | 170 | 6.0 | 28 | 1,10 | 13 | 0,51 | 1 kN x 4 = 4 kN | 225 LBF x 4 = 900 LBF | 24 | 5396 | • | Aluminum alloy | • |
• Compact double pulley
• Self-lubricated brass bushings with 80% efficiency
• Aluminum alloy body and sheaves, stainless steel axle
• Prusik-minding
• For ropes up to 13 mm
The Dryad is a remarkably compact double pulley designed for quick and easy haul systems. It features a large
primary attachment hole that accommodates two carabiners and a lower becket hole for a single carabiner.
Self-lubricated brass bushings are perfect for light applications at low speed. Prusik knots can be installed on
either side (aramid cord suggested) making it particularly useful for crevasse rescue scenarios.
